Erba Mannheim Hematology Range

EASY. EFFICIENT. RELIABLE.

Easy

Easy
  • One click analysis

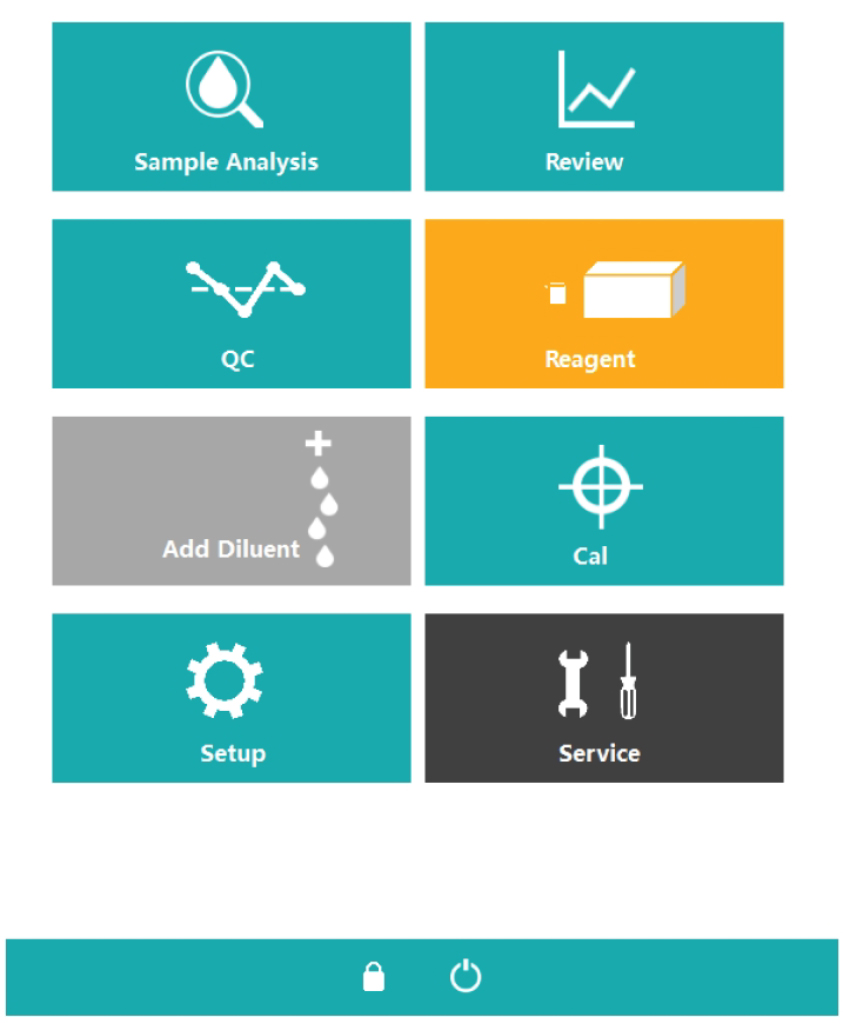

  • Simple user interface

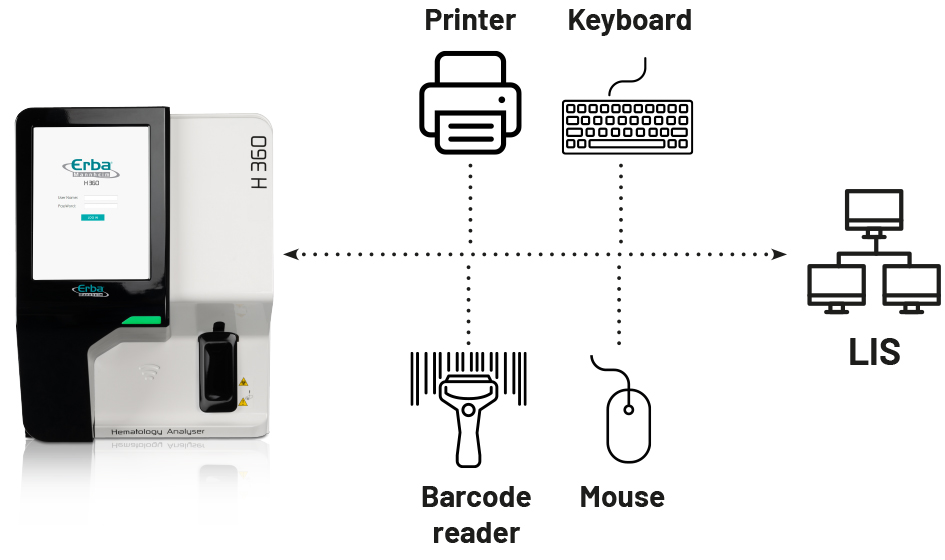

  • Erba Connect DX LIS Connectivity

Efficient

Efficient
  • Minimal sample volumes
  • Low reagent consumption
  • Only 2 reagents for H360
  • Small footprint

Reliable

Reliable
  • Modern engineering
  • Simple maintenance
  • Quality components

Watch H 360 / H 560 Video

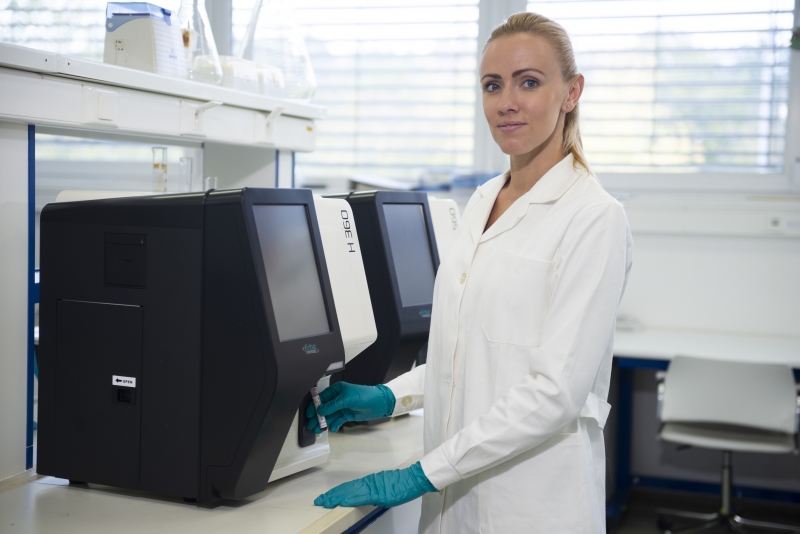

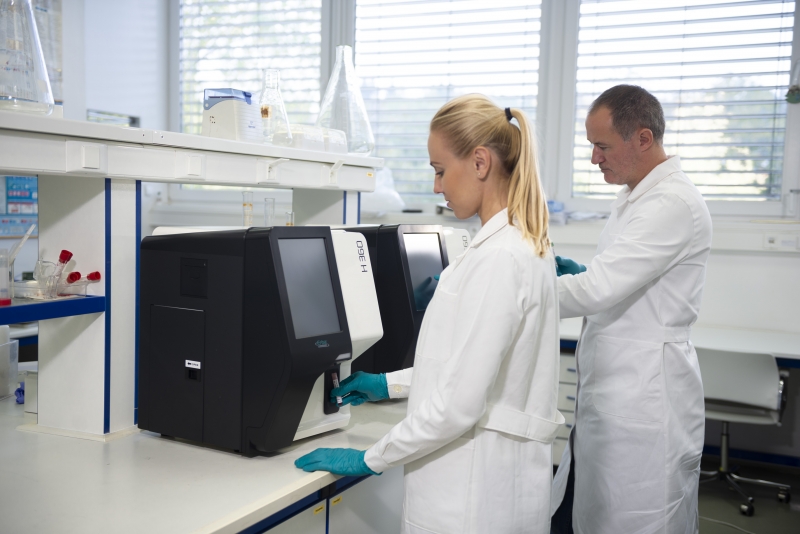

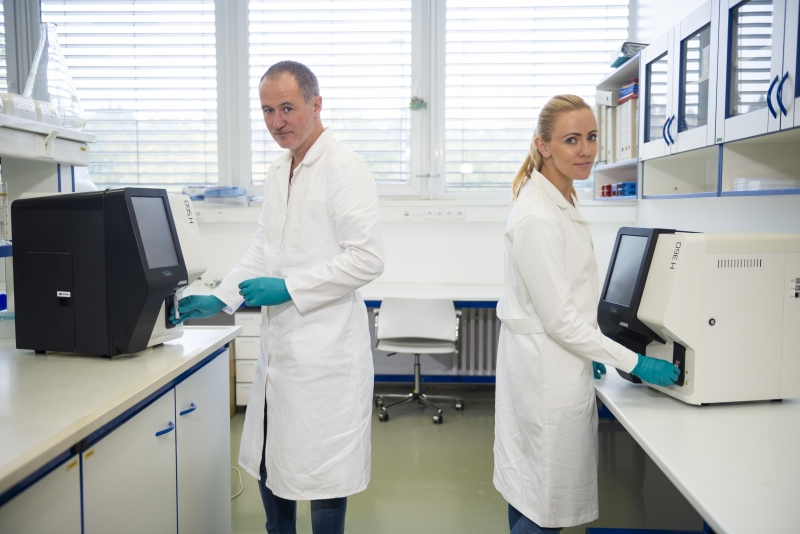

H360

Fully Automated 3-Part Hematology Analyser.
A fully automated 3-part complete blood count analyser for small laboratories or use as a second instrument.

Download Brochure
Read more

Features

Utilising electrical impedance technology and three counting modes, the H360 features advanced platelet analysis and anti-clog technology. With a throughput of up to 60 samples/hour, a built in thermal printer, and an easy user interface, the H360 delivers ease, efficiency and reliability.



Tech. parameters:

  • 9 µL aspiration volume
  • 10.4´´ LCD touchscreen
  • Small footprint - 364 x 477 mm

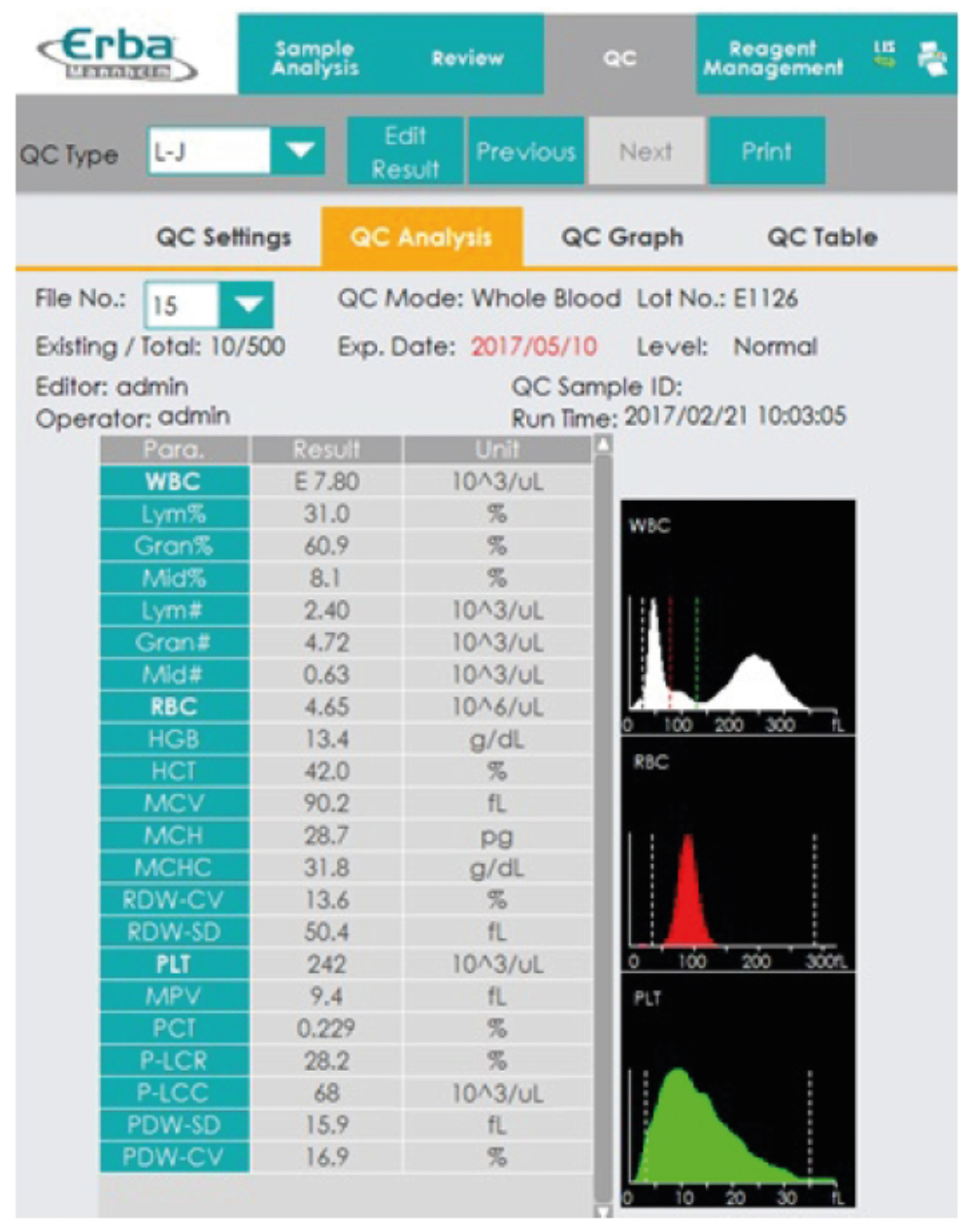

  • 22 Parameters (inc. P-LCR, P-LCC)

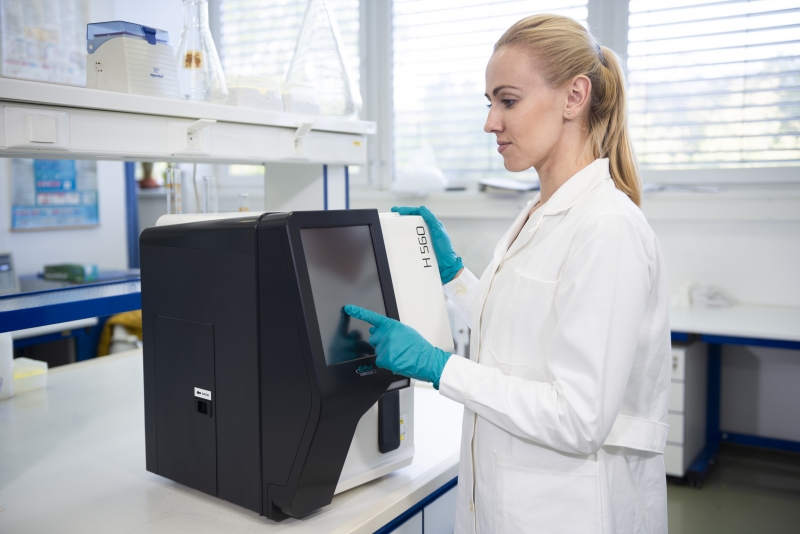

H560

Fully Automated 5-Part Hematology Analyser.
A fully automated 5-part complete blood count analyser for mid-size laboratories and those looking to upgrade from a 3-part differential system.

Download Brochure
Read More

Features

Utilising a combination of electrical impedance and three angle laser flow cytometry, the H560 provides high quality WBC differentials and detailed platelet analysis.
A throughput of up to 60 samples/hour, cost effective three-reagent design and an automated diluent dispense mode (ADDM) translate to precision, efficiency and low running costs.



Tech. parameters:

  • 15 µL aspiration volume
  • 10.4´´ LCD touchscreen
  • Small footprint - 364 x 498 mm
  • 32 Parameters

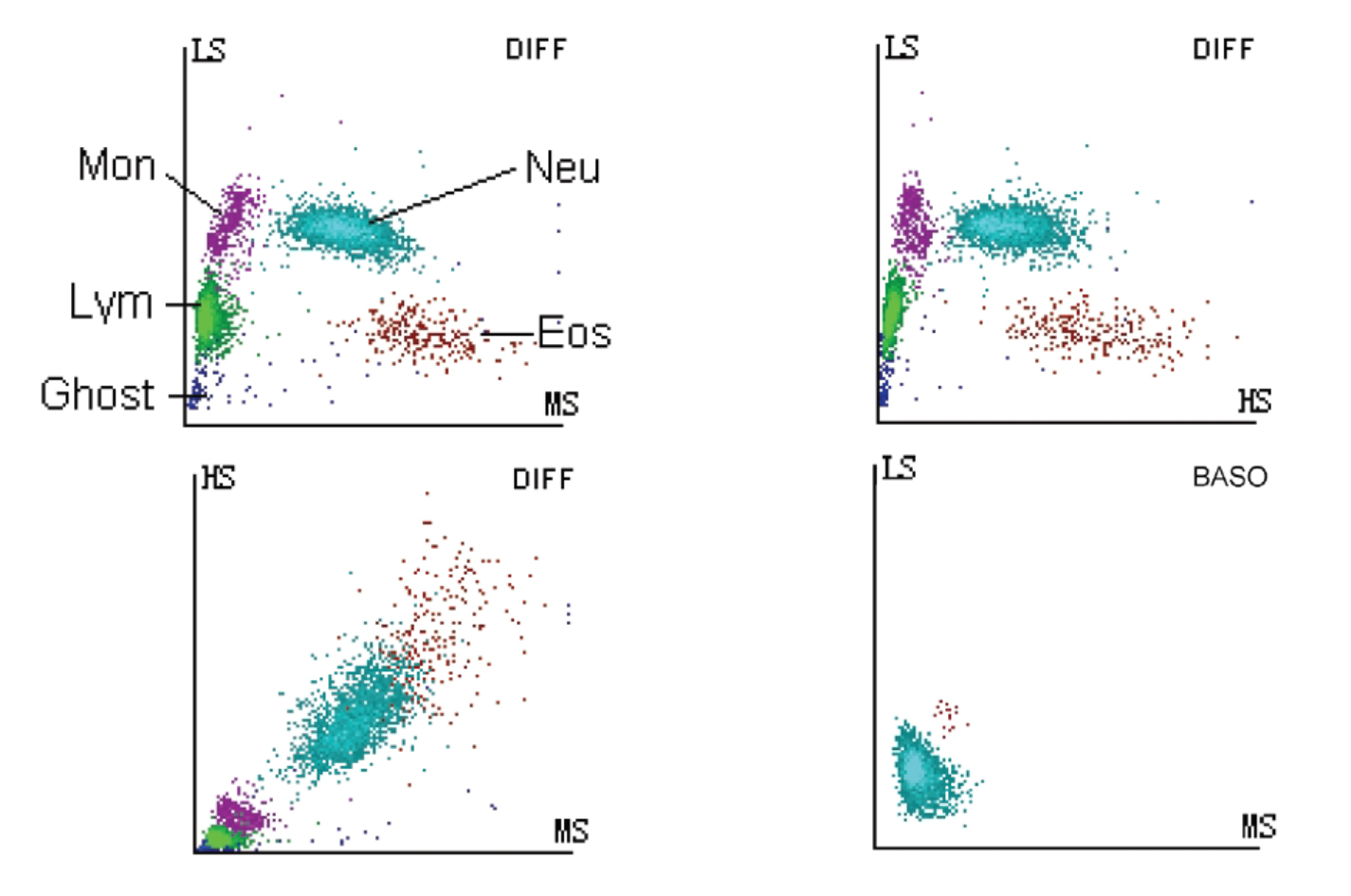

  • 4 Scatterplots (DIFF x3, BASO)
0%

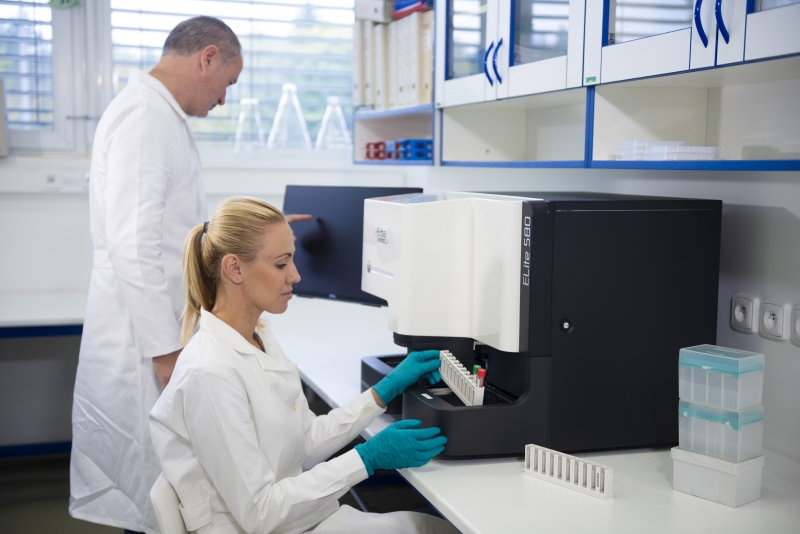

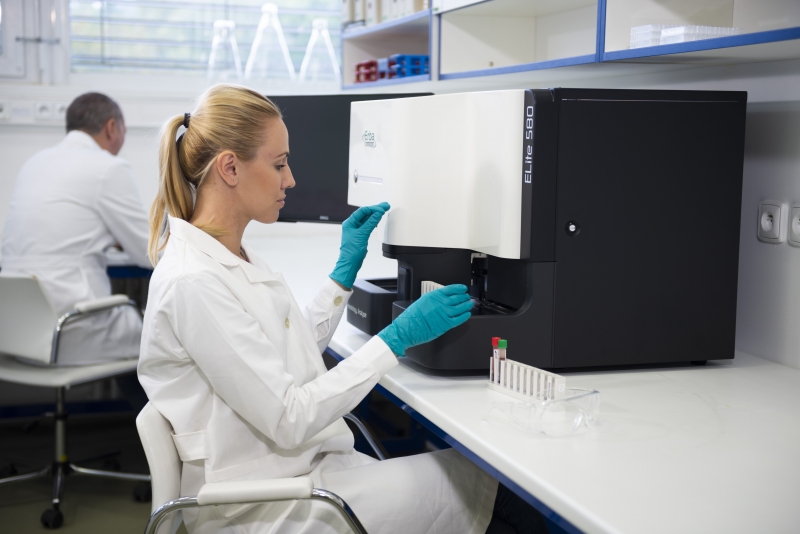

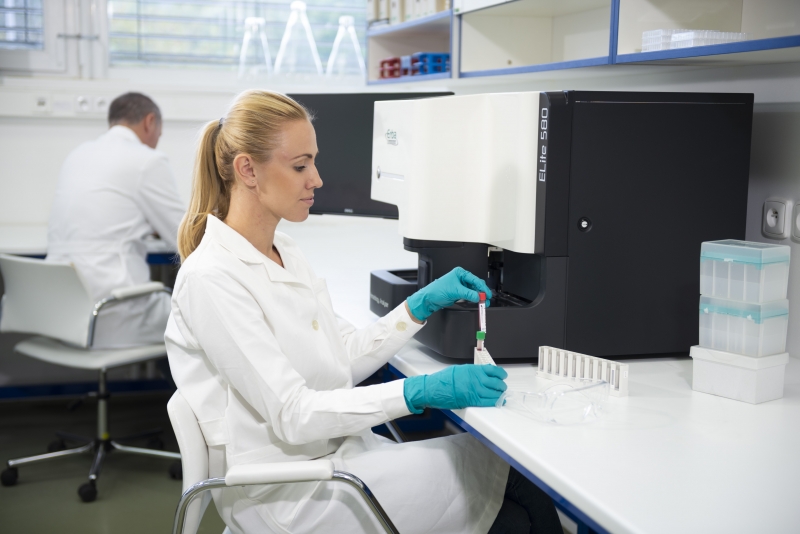

    ELite 580

    Fully Automated Hematology Analyser.
    The Erba Mannheim Elite 580 hematology analyser is a modern analytical platform that allows users to optimize their time in the laboratory. The Elite 580 features a 60-sample capacity autoloader allowing full walk away analysis. Launched in 2018, it forms part of Erba Mannheim’s Vertex range of diagnostic products, designed for mid-size laboratories.
    Download Brochure
    Read More

    Features

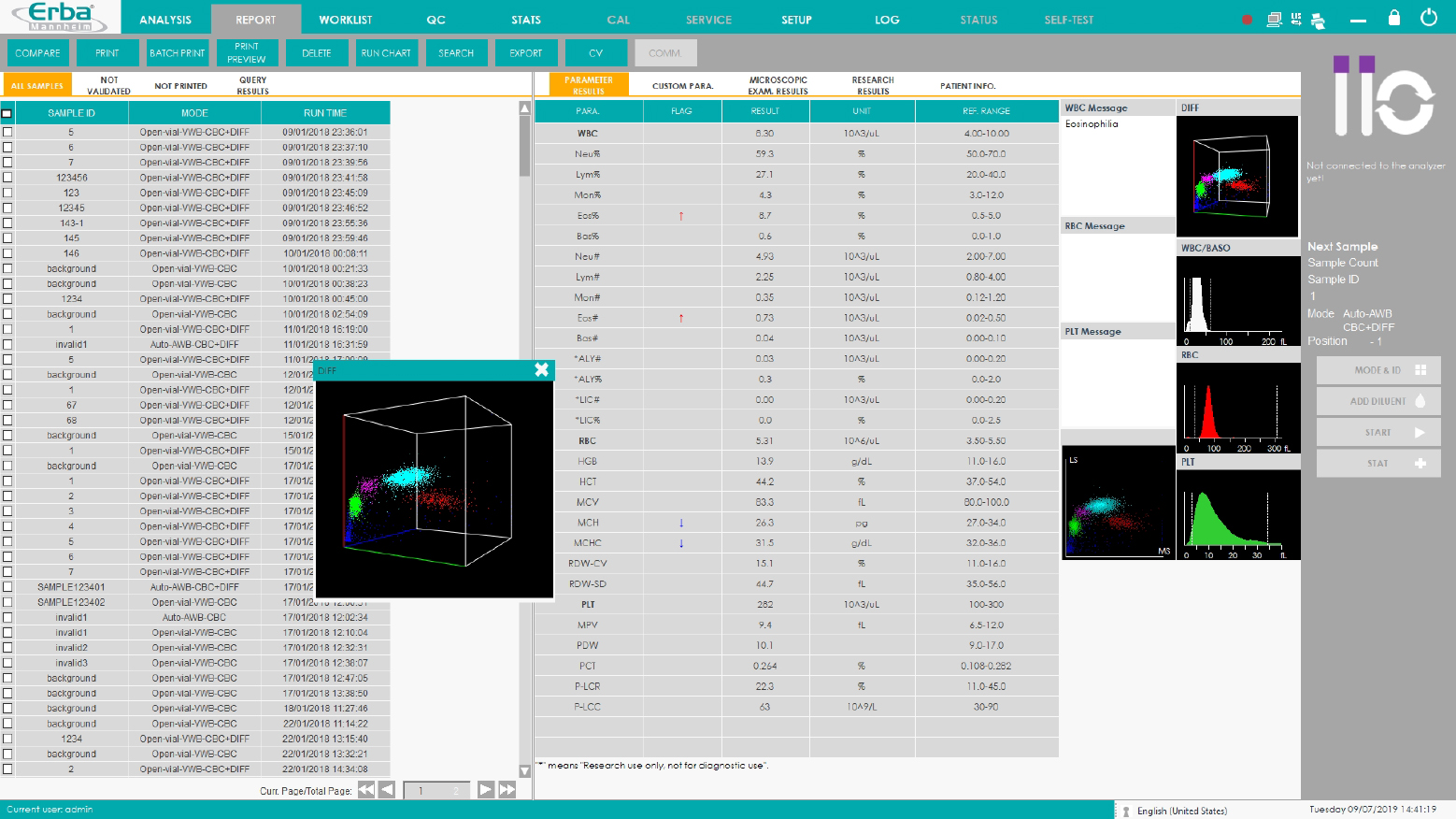

    The Elite 580 features a 22-inch full HD display which aids navigation through the easy to understand software. The software has been designed to aide smaller laboratories that do not have networked LIMS systems by being able to record offline testing results within the database. This can contribute to improved information security and patient outcomes.

    Evaluations and scientific data

    Detailed comparison studies have been completed during the introduction of the new product lines which have shown excellent results. These studies in many cases have been completed according to CLSI guidelines and have shown great results for accuracy, precision, carry-over and correlation against reference systems. For details of these studies please get in touch.

    Tech. parameters:

    • 20 µL aspiration volume
    • 22´´ LCD touchscreen
    • Small footprint - 650 x 550 mm
    • 29 Parameters
    • 1x 3D scattergram, 3x 2D scattergram, 3 histograms

    Key benefits of ELite 580

    Small footprint

    Small footprint
    Small footprint 650 x 610

    5 part differential with 29 parameters

    5 part differential with 29 parameters
    5 part differential with 29 parameters

    20uL

    20uL
    20 uL sample volume

    Autoloader

    Autoloader
    Autoloader for 60 samples

    22"HD

    22
    22"HD touch sceen display

    80 samples

    80 samples
    80 samples per hour

    RFID

    RFID
    RFID reagent management

    Modern design

    Modern design
    Modern design of device
